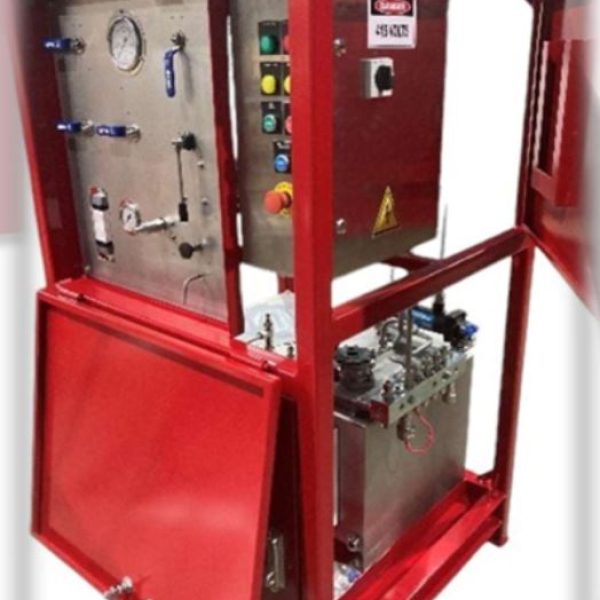

HWC HPU001 Hydraulic Power Unit
Precision Performance for Low-Flow & High-Pressure Hydraulic Applications
The HWC HPU001 is a versatile hydraulic power unit designed for high precision, efficiency, and seamless on-site integration. Driven by a 7.5 kW electric motor and a load-sense controlled piston pump, it reliably delivers up to 20 LPM at 230 Bar.
Key Capabilities & Applications
- Dynamic Hydraulic Testing: Ideal for cylinder cycling and function testing across various hydraulic components.
- System Flushing & Maintenance: Built for both online and offline flushing of hoses, tubes, pipework, and cooler systems.
- Pressure Testing: Features a dedicated low-pressure line for precise testing tasks.
- Fluid Conditioning: Ensures oil purity using multi-stage filtration (3µm, 5µm, or 10µm).
Technical Highlights
| Feature | Specification |
| Power Rating | 7.5 kW Electric Driven (415VAC 50Hz / 440VAC 60Hz) |
| Max Supply | 230 Bar / Up to 24 LPM |
| Tank Capacity | 100L (Hydraulic Mineral Oil) |
| Weight and Dims | 587kg – L:950mm, W:950mm, H:1700mm |
| Filtration | Pressure and Return Filtration |
